Installation

Download the project

Using git

Clone repository
git clone https://github.com/luc-github/ESP3D-TFT.git ESP3D-TFT
Go to the project
cd ESP3D-TFT
Update the project submodules
git submodule update --init --recursive

Note

If you have limited network access and have issue to connect to GitHub, it is recommended to use dev sidecar software.

Using release package

Not ready yet, please be patient

Setup your development environment

Visual Studio Code

Download and install VSCode

Install the espressif vscode extension

The espressif extension can be installed using the extension manager.

Espressif Extension

Please follow the official tutorial

You can also install ESP-IDF offline .Especially suitable for people with slow download speeds. - Download installer. - Installing the installer.

Install the CMake extension and CMake Tools extension in vscode

Cmake can automatically download the components required for ESP3D, such as camera and USB host.

Configure the extension

Select : View->Command palette
Type : configure esp

Note

Currently ESP3D-TFT use the released version 5.1.2 of the IDF, using another release version of the IDF is not supported.

If you install ESP-IDF offline, you need to select "UseExitSetup"

Then select the ESP IDF installation path

Open ESP3D-TFT project

Go to file and select open folder where project is located

Configure the CMakeLists.txt

Select the target according the hardware

# #######################################
# Select the targeted hardware
# #######################################

# With TFT:
OPTION(ESP32S3_HMI43V3 "TFT TARGET is ESP32S3 HMI 4.3inches" OFF)
OPTION(ESP32_ROTRICS_DEXARM35 "TFT TARGET is ESP32 Rotrics DexArm 3.5inches" OFF)
OPTION(ESP32S3_ZX3D50CE02S_USRC_4832 "TFT TARGET is ESP32S3 Panlee ZX3D50CE02S-SRC-4832 3.5inches" ON)
OPTION(ESP32S3_BZM_TFT35_GT911 "TFT TARGET is ESP32S3 Panlee BZM 3.5inches" OFF)
OPTION(ESP32S3_8048S070C "TFT TARGET is ESP32S3_8048S070C - 7.0in. 800x480 (Capacitive)" OFF)
OPTION(ESP32S3_8048S050C "TFT TARGET is ESP32S3_8048S050C - 5.0in. 800x480 (Capacitive)" OFF)
OPTION(ESP32S3_8048S043C "TFT TARGET is ESP32S3_8048S043C - 4.3in. 800x480 (Capacitive)" OFF)
OPTION(ESP32S3_4827S043C "TFT TARGET is ESP32S3_4827S043C - 4.3in. 480x272 (Capacitive)" OFF)
OPTION(ESP32_3248S035C "TFT TARGET is ESP32_3248S035C - 3.5in. 480x320 (Capacitive)" OFF)
OPTION(ESP32_3248S035R "TFT TARGET is ESP32_3248S035R - 3.5in. 480x320 (Resistive)" OFF)
OPTION(ESP32_2432S028R "TFT TARGET is ESP32_2432S028R - 2.8in. 320x240 (Resistive)" OFF)

# Without TFT:
OPTION(ESP32S3_FREENOVE_1_1 "HARDWARE TARGET is ESP32S3 Freenove v1.1" OFF)
OPTION(ESP32S3_CUSTOM "HARDWARE TARGET is ESP32S3 custom board" OFF)
OPTION(ESP32_CUSTOM "HARDWARE TARGET is ESP32 custom board" OFF)


# #######################################
# Optionally: Select hardware mods applied
# #######################################
#only for ESP32S3_8048S070C OR ESP32S3_8048S050C OR ESP32S3_8048S043C OR ESP32S3_4827S043C OR ESP32_3248S035C
OPTION(HARDWARE_MOD_GT911_INT "Hardware Mod: GT911 INT pin" OFF)

#Only for ESP32_3248S035C OR ESP32_3248S035R OR ESP32_2432S028R
# 4MB Flash, no PSRAM by default
OPTION(HARDWARE_MOD_8MB_FLASH "Hardware Mod: 8MB Flash Upgrade" OFF)
OPTION(HARDWARE_MOD_16MB_FLASH "Hardware Mod: 16MB Flash Upgrade" OFF)
OPTION(HARDWARE_MOD_EXT_PSRAM "Hardware Mod: External PSRAM" OFF)



# #######################################
# Select the targeted firmware
# #######################################
OPTION(TARGET_FW_MARLIN "Marlin firmware" ON)
OPTION(TARGET_FW_REPETIER "Repetier firmware" OFF)
OPTION(TARGET_FW_SMOOTHIEWARE "Smoothieware firmware" OFF)
OPTION(TARGET_FW_GRBL "GRBL firmware" OFF)


# #######################################
# Select the Features
# #######################################
OPTION(ESP3D_AUTHENTICATION "Authentication on all clients" OFF)
OPTION(DISABLE_SERIAL_AUTHENTICATION "Disable Serial Authentication" ON)
OPTION(TIME_SERVICE  "Time service" ON)
OPTION(SSDP_SERVICE "SSDP service" ON)
OPTION(MDNS_SERVICE "MDNS service" ON)
OPTION(WIFI_SERVICE "WiFi service" ON)
OPTION(BT_SERVICE "Bluetooth service" ON)
OPTION(WEB_SERVICES "Web Services http/websocket/webdav" ON)
OPTION(WEBDAV_SERVICES "WebDav Services" ON)
OPTION(TELNET_SERVICE "Telnet service" ON)
OPTION(WS_SERVICE "WebSocket data service" ON)
OPTION(TFT_UI_SERVICE "TFT UI service" ON)
OPTION(SD_CARD_SERVICE "SD card service" ON)
OPTION(NOTIFICATIONS_SERVICE "Notifications service" ON)
OPTION(UPDATE_SERVICE "Update service" ON)
OPTION(USE_FAT_INSTEAD_OF_LITTLEFS "Use FAT instead of LittleFS" OFF)

# #######################################
# Do not change anything below this line
# #######################################
cmake_minimum_required(VERSION 3.12.4)
set(CMAKE_CXX_STANDARD 20)

include (cmake/targets.cmake)

include($ENV{IDF_PATH}/tools/cmake/project.cmake)

include (cmake/features.cmake)

project(ESP3D-TFT
    VERSION 1.0
    DESCRIPTION "ESP3D TFT")

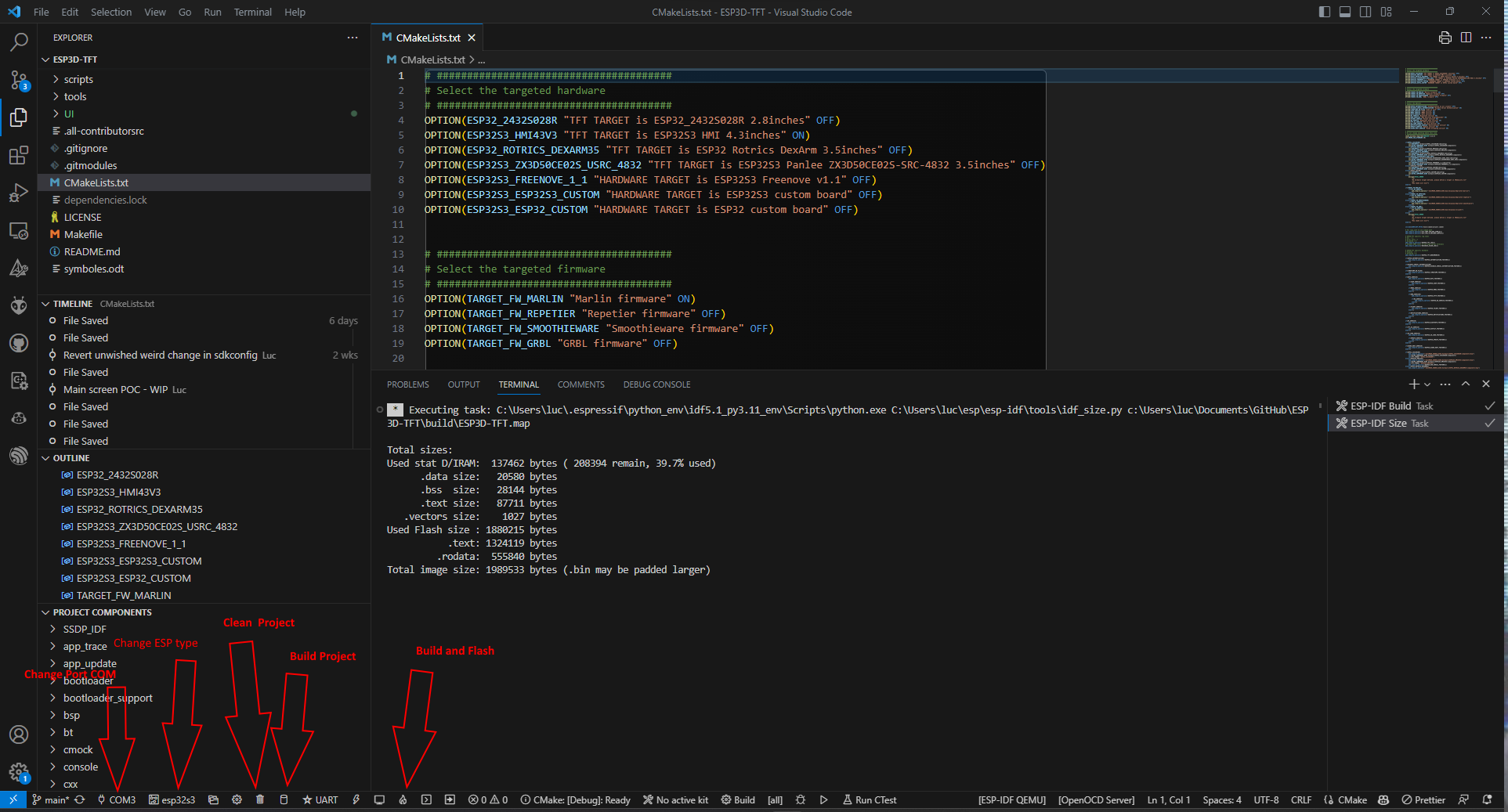

Clean / Compile / Flash

Select : View->Command palette
- Type : ESP-IDF: (Clean / Build / Flash..)

or

Just use the bottom menu for all commands

Note

Sometime the build button failed and you must delete the build directory manualy

If compilation failed because of missing components like ssdp or LittleFS, it means you did not executed the git submodule update --init --recursive

If compilation failed because of not declared config element like CONFIG_FATFS_MAX_LFN, it means your sdkconfig is corrupted, it happen when you change target esp, you may see a ne file with .old at the end, it is a bug in extension, just revert all change done in repository.

You can check using the command git status -s to see if you have any change in repository

If you use github desktop application, just revert all changes in repository, if you used git, you can revert all changes with git reset --hard HEAD You need to update the CMakeLists.txt to match your hardware the revert command removed your latest changes.

Connect the TFT

Note

If you use serial connection, to ensure the esp board and the connected board can communicate, be sure both boards use the same baud rate.
