From Wireless Tag

Specs

  • ESP32 with 4MB flash memory, ceramic antenna, RJ45 ethernet port

Note

Network is available to only for one peripheral at a time. It support only Wi-Fi communications or only Ethernet communications or Bluetooth communications not all at once.

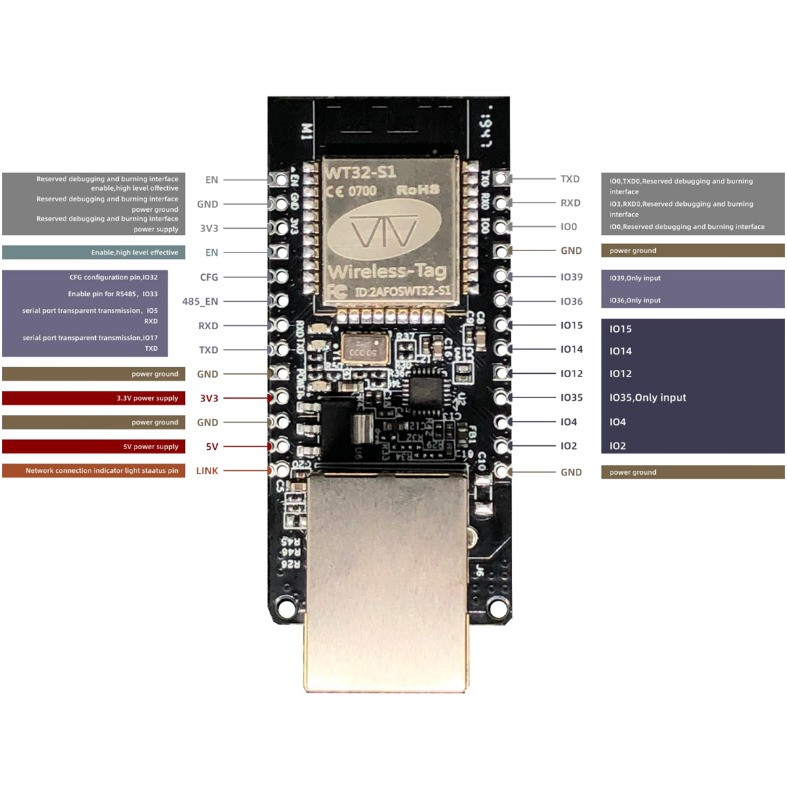

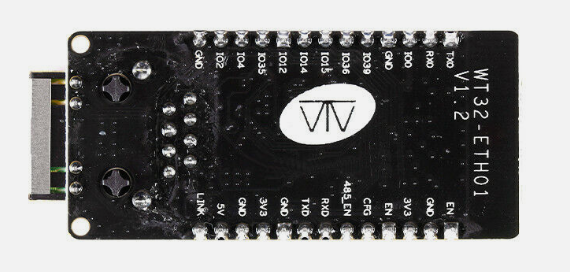

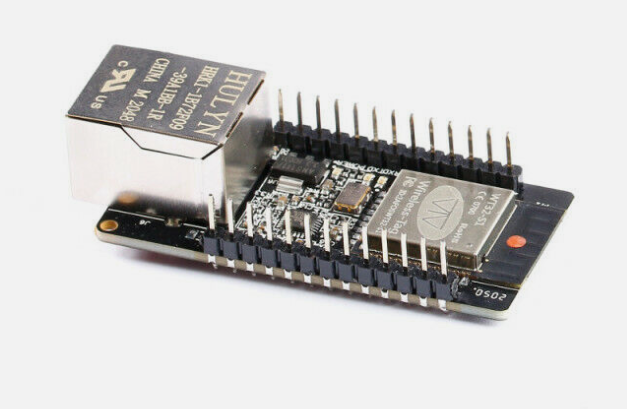

image image image

How to enable ?

In configuration.h:

#define ETH_FEATURE

//Ethernet type (Check ETH.h eth_phy_type_t)
#define ESP3D_ETH_PHY_TYPE TYPE_ETH_PHY_LAN8720

//Ethernet board Clock mode
#define ESP3D_ETH_CLK_MODE MODE_ETH_CLOCK_GPIO0_IN

//Pins of ethernet board
#define ESP3D_ETH_PHY_POWER_PIN 16
#define ESP3D_ETH_PHY_MDC_PIN 23
#define ESP3D_ETH_PHY_MDIO_PIN 18

//Address of ethernet board
#define ESP3D_ETH_PHY_ADDR 1

Note

Do not use GPIO 0 because it is used by ethernet board.
e.g if you have these settings then comment them:

//#define PIN_RESET_FEATURE

/* Reset pin
* The pin used to reset ESP3D setting if set to low for more than 1 second at start
*/
//#define ESP3D_RESET_PIN 0
