Specs

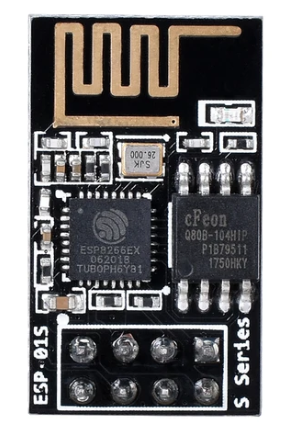

  • ESP8266 in ESP01 format (8 pins, VCC/CH_DP internally bridged ) with 1MB flash memory, ceramic antenna


Note

Because flash is only 1MB, OTA/Web Update are not possible

Pinout

1 2 3 4
GND IO02 IO0 RXD
TXD CH_PD RESET VCC
