Specs

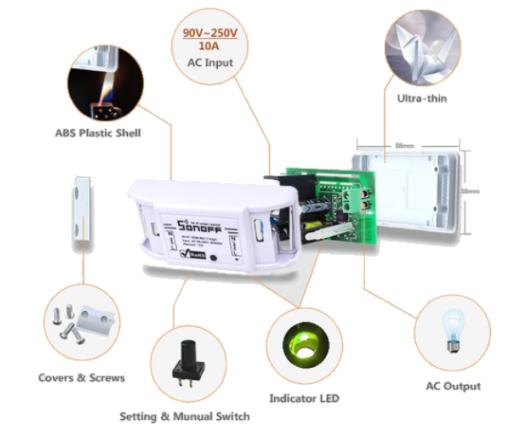

  • ESP8266 with 4MB flash memory, ceramic antenna

image image image

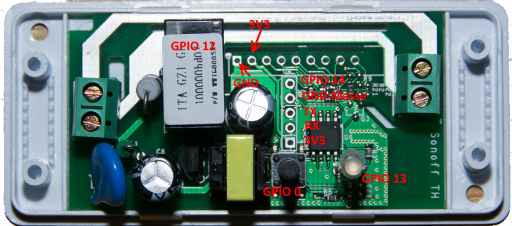

image Relay is connected by GPIO12, it can be handled using ESP201 command:

So [ESP201]P=12 V=0 should be off and [ESP201]P=12 V=1 should be on
