Specs

  • ESP8266 with 4MB flash memory, ceramic antenna/ipex connector, allow to share SD card SPI pins between ESP and printer SD card reader

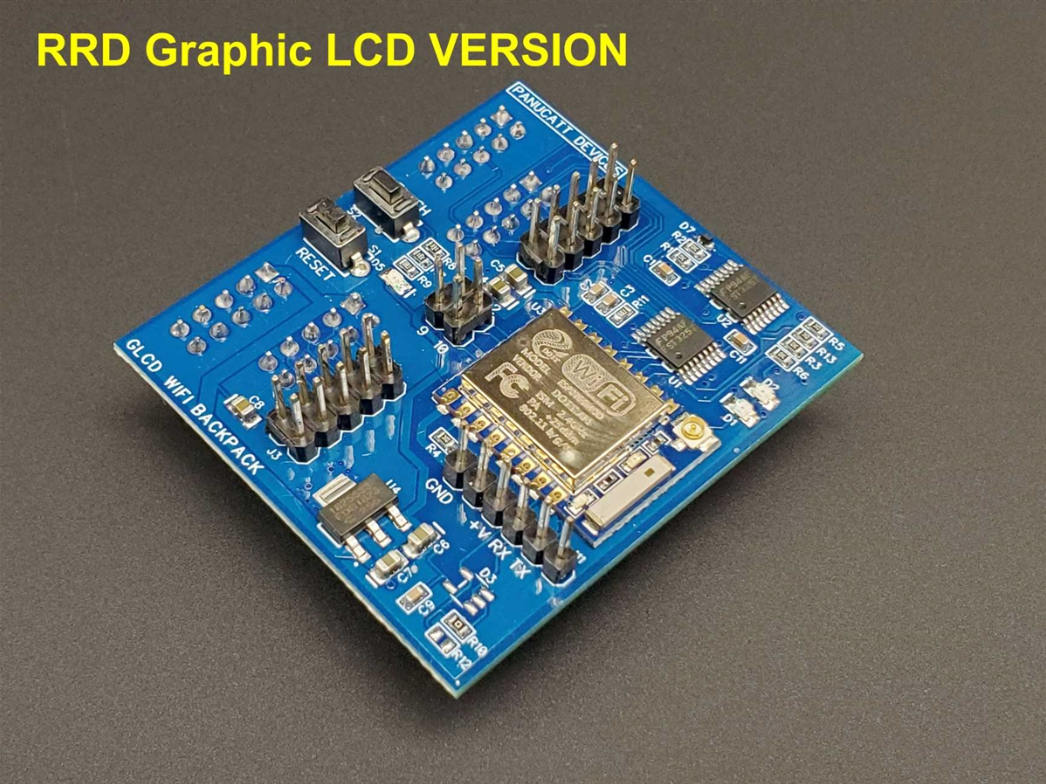

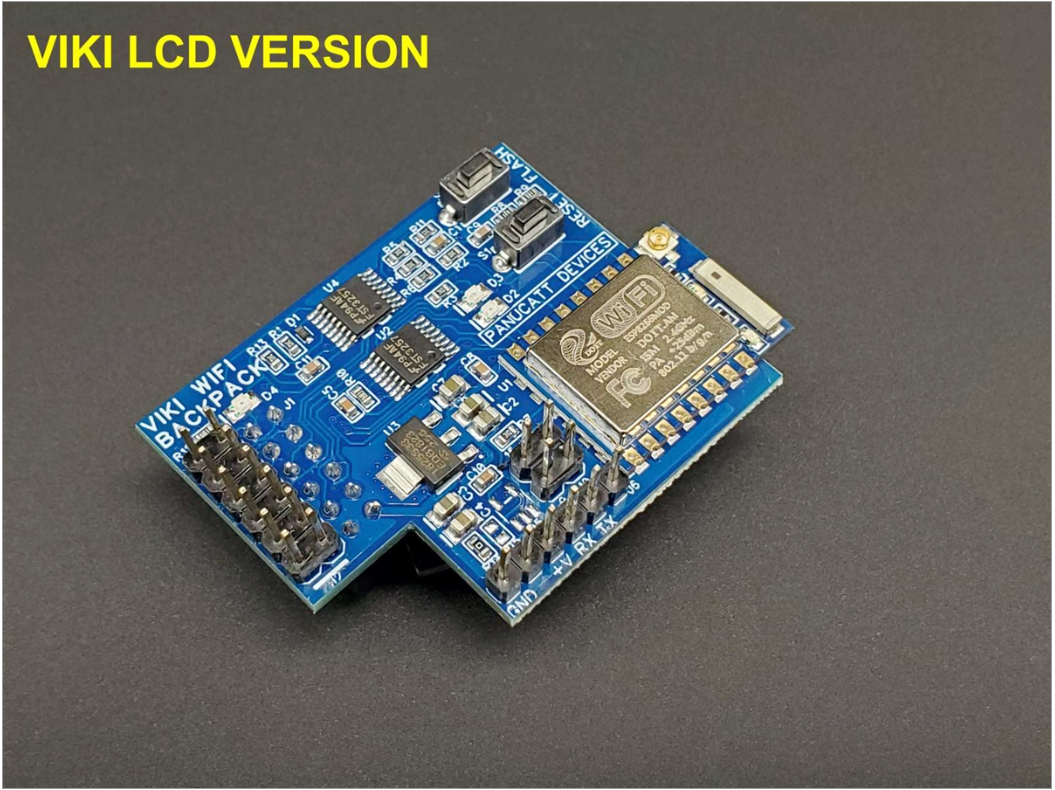

Fom Panucatt devices

image image

Pinout

Pin Function Description
IO05 CS SPI
IO04 SD Detect pin Low = SD present
IO0 Flag pin ESP = LOW, Printer = HIGH
