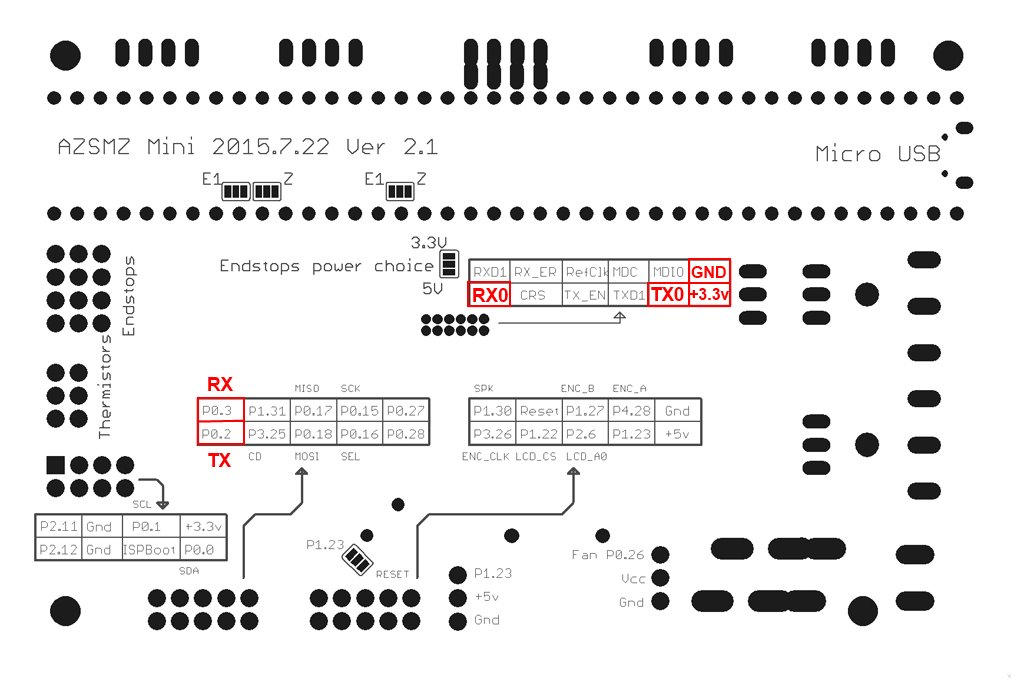

If you don't have the soldering skills to grab the connectors from the unpopulated ethernet connection, you can also get 3.3v and GND from the ISP header (bottom left on the diagram above).

step1
Board pins voltage 3.3v
Board firmware Smoothieware
Board configuration note Enable second serial port in the config.txt
ESP3D configuration note Raw serial, no SD
