Extensions

What is an extension ?

An extension is a small piece of code that can be added to the Web UI to add new functionality. It can be used to add new tabs and new panels in WebUI. Extensions are dynamic, modular components that enhance the functionality of our main application. They are designed to be flexible and easily integrated, allowing for customization and expansion of features without modifying the core application. Key characteristics of extensions include:

Isolated Execution: Extensions run within their own iframe, ensuring a level of separation from the main application.
Dynamic Loading: They can be loaded on-demand, improving the application’s overall performance and flexibility.
Consistent Styling: Extensions adopt styles from the main application, maintaining a cohesive look and feel.
Diverse Functionality: Extensions can serve various purposes, from adding new features to integrating external services.
Managed Lifecycle: The system handles the loading, display, and unloading of extensions, simplifying their management.

By leveraging extensions, our application becomes more adaptable and can cater to a wide range of user needs while maintaining a stable core structure.

Extension manifest

Starting with WebUI 3.1, every extension must include a manifest declaring its compatibility and metadata. Extensions without a valid manifest are shown as Unsupported and will not load.

Embedded manifest (recommended)

Embed the manifest directly in the HTML as a <script> block:

<script type="application/json" id="esp3dext-manifest">
{
  "name": "My Extension",
  "target": "panel",
  "supportedVersion": "3.*",
  "targetSystem": "*"
}
</script>

External sidecar manifest

Place a JSON file alongside the HTML with the same base name:

Layout	HTML file	Manifest file
Flat	`esp3dext-myplugin.html`	`esp3dext-myplugin.json`
Flat compressed	`esp3dext-myplugin.html.gz`	`esp3dext-myplugin.json`
Subdirectory	`esp3dext-myplugin/esp3dext-myplugin.html`	`esp3dext-myplugin/esp3dext-myplugin.json`

Manifest fields

Field	Required	Description
`name`	yes	Display name shown in the extensions list
`target`	yes	Placement: `panel`, `page`, or `content`
`supportedVersion`	yes	WebUI version pattern, e.g. `3.`, `3.1.`
`targetSystem`	yes	Target filter — see below
`owner`	no	Author name
`version`	no	Extension version (semver)
`github`	no	Repository or homepage URL
`description`	no	Short description
`icon`	no	Feather icon name (e.g. `Tool`, `Terminal`, `Camera`)
`refreshtime`	no	Auto-refresh interval in ms (`0` = disabled)

`target` values

Value	Effect
`panel`	Added as a collapsible panel in the main area
`page`	Added as a full-page tab
`content`	Embedded as extra content

`supportedVersion` patterns

Pattern	Matches
`*`	Any version
`3.*`	Any 3.x version
`3.1.*`	Any 3.1.x version

`targetSystem` values

Value	Target
`*`	All targets
`3d printer`	All 3D printer firmwares
`cnc`	All CNC firmwares
`sand table`	Sand table
`marlin`	Marlin specifically
`grbl`	GRBL specifically
`grblhal`	grblHAL specifically

Multiple values: "3d printer, cnc".

File format and naming

Flat file (simple extension)

esp3dext-<name>.html          plain HTML
esp3dext-<name>.html.gz       gzip-compressed

The file must start with esp3dext-. Upload it to the extensions/ subdirectory of the device filesystem, or to the root as a fallback.

Subdirectory (extension with assets)

When an extension needs additional files (images, CSS, scripts), use a subdirectory:

extensions/
  esp3dext-<name>/
    esp3dext-<name>.html        main HTML file
    esp3dext-<name>.json        sidecar manifest (optional)
    assets/                     any extra files referenced by the HTML

The directory must start with esp3dext-. The main HTML inside the directory must share the exact same base name as the directory.

Scan for extensions

Starting with WebUI 3.1, you can use the Scan for extensions feature in Settings → Interface → Extra content.

The WebUI scans /extensions (or root / as fallback) for files and directories starting with esp3dext-. It reads the embedded manifest from each file, filters by WebUI version (supportedVersion) and target (targetSystem), and displays the result with three possible statuses:

Available — the extension is compatible and not yet installed
Installed — the extension is already added to extra content
Unsupported — the extension has no valid manifest or does not match the current version/target

You can select multiple extensions and add them in one click with Add selected. Checkboxes are checked by default for a quicker import.

Install an extension in Web UI

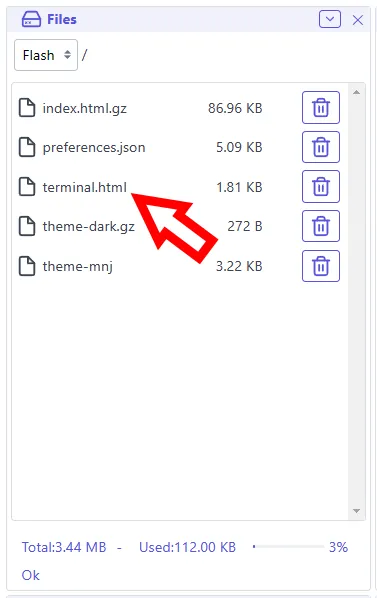

Manual upload

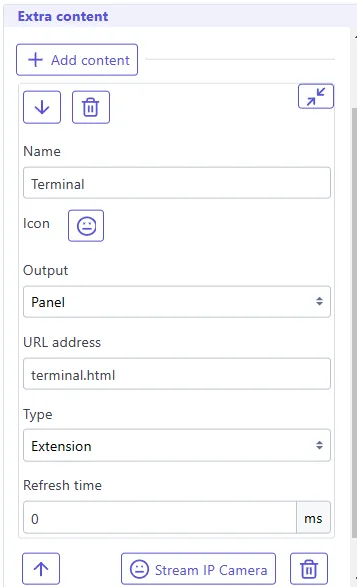

Add extra panel or page using this extension

It will be displayed according your settings

Communication API

Extensions communicate with the WebUI via postMessage. The WebUI injects its CSS and active theme into every extension iframe automatically.

For the full API documentation, see Extensions API.
