Web Sockets

On this page

• Implementation differences: ESP-IDF vs Arduino
• 1. Terminal WebSocket — /ws, subprotocol webui-v3
• 2. Data WebSocket — /wsdata, subprotocol esp3d-v1
• Frame types
• Capability probe
• Transfer flow summary
• Server implementation guide
• Testing
• Reference implementation

---

There are two separate WebSocket endpoints. They use different URI paths and subprotocols; a client must use the correct pair. Negotiating the wrong subprotocol or path means the connection is handled by the wrong service — file transfer will not work.

Endpoint	Typical URI (ESP-IDF)	Subprotocol (Sec-WebSocket-Protocol)	Role
Terminal / WebUI	/ws	webui-v3	BINARY = raw machine/serial bytes (no V1 header). TEXT = PING, NOTIFICATION:, currentID:, etc.
Data (external tools)	/wsdata	esp3d-v1	ESP commands + G-code in TEXT; BINARY = V1 status and file upload/download (SR, SU, …).

Common mistake: sending V1 binary opcodes on /ws. The server treats binary as stream data, not file-transfer frames — transfers are impossible on that socket by design.

---

Implementation differences: ESP-IDF vs Arduino

Depending on the underlying HTTP server framework, the deployment of these two endpoints differs:

• ESP-IDF (httpd_ws): Both /ws and /wsdata operate on the same HTTP port (port 80). The server routes connections to the correct handler strictly based on the requested URI path.
• Arduino (WebSocketsServer): The server cannot natively multiplex WebSockets on the main HTTP port 80. Instead, ESP3D creates two separate TCP listeners on different ports. Typically, the Terminal WebSocket uses HTTP_PORT + 1 (e.g., 81), and the Data WebSocket uses the port configured in settings (ESP_WEBSOCKET_PORT, typically 82). The URI path (/ws vs /wsdata) is ignored; the client must connect to the correct port directly.

---

1. Terminal WebSocket — /ws, subprotocol webui-v3

Text mode

Reserved messages between WebUI and ESP.
Format: <label>:<message>

ESP → WebUI:

• currentID:<id>
  Sent when client connects. It is the last used ID and becomes the active ID.

• activeID:<id>
  Broadcast when a new client connects. Clients without this ID should close.
  The ESP WS server closes all open WS connections except this one.

• PING:<time left>:<time out>
  When authentication is enabled: response to a PING:<sessionId> from the client, informing the time remaining before inactivity timeout.

• PONG:<server_millis>
  When authentication is disabled (or client sends bare PING without sessionId): firmware answers with a monotonic millisecond value. Used as keepalive reply.

• ERROR:<code>:<message>
  Raised during upload when the HTTP answer cannot cancel it.
  This is a workaround: there is no API in the current webserver to cancel an active upload.

• NOTIFICATION:<message>
  Forwards the message sent by [ESP600] to the WebUI toast system.

• SENSOR: <value>[<unit>] <value2>[<unit2>] …
  Sensor data (e.g. DHT22 temperature/humidity).

WebUI → ESP:

• PING:<sessionId>
  When authentication is enabled: keepalive ping sending the current session cookie ID.

• PING:0
  Optional keepalive without authentication; ESP answers PONG:<server_millis>.

Keepalive / heartbeat

• Clients should read TEXT frames from the server (PONG:…, currentID, stream lines, etc.).
• On ESP-IDF 5.4.x, WebSocket DATA handlers may see req->content_len == 0 while a TEXT frame is still pending; the firmware must use httpd_ws_recv_frame() to read it, otherwise client PING is never handled and heartbeats fail.

Binary mode — machine stream (not V1)

ESP → client: payloads are raw bytes from the CNC/serial stream forwarded to the WebUI. There is no application header — not the 4-byte opcode + u16 length layout used on /wsdata.

How the embedded WebUI decodes binary (embedded/src/index.js): each byte is mapped with String.fromCharCode(byte) (ISO-8859-1 style). Buffered until \n (0x0A) or \r (0x0D), then flushed as a line to the console.

Client → ESP: inbound binary on /ws is not interpreted (stub). User commands and G-code are sent as TEXT frames with \n/\r line discipline.

---

2. Data WebSocket — /wsdata, subprotocol esp3d-v1

This endpoint carries the ESP3D WebSocket Protocol V1: binary file-transfer and status frames, plus a text channel for ESP commands.

Scope

In scope	Out of scope
Binary frames: status, upload, download, abort	Terminal WebSocket (webui-v3)
Text channel on the same socket (ESP commands, listings)	HTTP upload / WebDAV
Ordering, timeouts, capability probe	WebSocket session / cookie auth (future)

Authentication

V1 is specified for the no-WebSocket-auth case: after connect, the client reads the welcome TEXT frame, then may send binary SR or text commands without tokens.

Builds with ESP3D_AUTHENTICATION_FEATURE may expose /wsdata without the same checks as HTTP until a future revision documents the handshake. Simplest interop: open socket → welcome → SR / SU / … with no extra steps.

Protocol version

V1 is identified explicitly when the server answers SR while idle: see Capability probe below. Future revisions may increment the version byte or add opcodes; clients must ignore unknown opcodes if they only need a subset.

Two client checks

Step	What it validates	Failure means
(1) WebSocket handshake	TCP + HTTP upgrade to /wsdata with esp3d-v1 negotiated	Wrong host/port, 404, subprotocol rejected — no data channel
(2) Status command SR → RS	After socket open, send binary SR and receive RS within timeout	Endpoint open but no V1 binary handler — do not infer V1 from handshake alone

On connect

The server sends one TEXT frame first: a welcome line (Welcome to ESP3D-X V…). Clients must read it before assuming the next message is a command reply.

Text mode

Used for ESP commands and G-code relay (e.g. [ESP720] list flash, [ESP740] list SD). Use json=yes for directory listings — one JSON object, faster and unambiguous. Plain-text listings end with Total:… / Available:… lines without a final ok.

Line termination: client TEXT is accumulated until \n or \r. A frame without a line ending is received but does not run the command. Tools should send [ESP720]…\n.

Flash paths: [ESP720] takes paths relative to the flash logical root; use / for root.

Binary mode — V1 frame format

Packet data size defaults to 1024 bytes (ESP3D_WS_TRANSFER_PACKET_SIZE).

All frames share the same header:

Byte 0	Byte 1	Byte 2–3	Byte 4+
Opcode MSB	Opcode LSB	Payload length (uint16_t LE)	Payload

• Opcode: 2 ASCII bytes identifying the frame type (e.g. SR, UP).
• Payload length: number of bytes that follow the header, little-endian uint16_t.
• All multi-byte integer fields in the payload are little-endian.

Start / ACK status byte (first byte of US, DS, PU, UE where applicable):

Byte	Hex	Meaning
O	0x4F	ok / idle
E	0x45	error
B	0x42	busy
A	0x41	abort

---

Frame types

Query status — SR / RS

Client → ESP (no payload):

S

R

0x00

0x00

ESP → Client:

Response to SR. First payload byte = transfer state:

Byte	Hex	Meaning
O	0x4F	idle / ok
B	0x42	busy
E	0x45	error
A	0x41	abort
D	0x44	download ongoing
U	0x55	upload ongoing

Idle (V1): payload = O (0x4F) + 1 (0x01) — protocol version byte.

R

S

0x02

0x00

O

1

Note: legacy servers may send only O (1-byte payload, no version).

Error:

After the status byte: 1 byte error code, 1 byte string length, then the string.

R

S

PL_LO

PL_HI

E

ERR_CODE

STR_LEN

STR…

Upload in progress:

After the status byte: path size (1 byte), path, filename size (1 byte), filename,
total file size (uint32_t LE), processed bytes (uint32_t LE), last packet ID (uint32_t LE).

R

S

PL_LO

PL_HI

U

PATH_SZ

PATH…

NAME_SZ

NAME…

TOTAL(4)

DONE(4)

LAST_ID(4)

Download in progress:

Same layout as Upload ongoing, with D status byte.

R

S

PL_LO

PL_HI

D

PATH_SZ

PATH…

NAME_SZ

NAME…

TOTAL(4)

DONE(4)

LAST_ID(4)

---

Start upload — SU / US

Client → ESP:

Payload: path size (1 byte), path, filename size (1 byte), filename, total file size (uint32_t LE).

S

U

PL_LO

PL_HI

PATH_SZ

PATH…

NAME_SZ

NAME…

FILE_SIZE(4)

ESP → Client (OK — transfer can start):

U

S

0x01

0x00

O

ESP → Client (Error — transfer rejected):

U

S

0x01

0x00

E

---

Upload packet — UP / PU

Client → ESP:

Payload: packet ID (uint32_t LE), then data bytes.

U

P

PL_LO

PL_HI

ID(4)

DATA…

ESP → Client (ACK):

Success (5 bytes): O + packet_id (uint32_t LE).

P

U

0x05

0x00

O

ID(4)

Error (5 bytes): E + packet_id (uint32_t LE). If UP payload was too short to contain an id, id = 0xFFFFFFFF.

P

U

0x05

0x00

E

ID(4)

Note: clients may treat PU with length 1 and E only as a legacy pre-correlation response.

---

End upload — EU / UE

Sent by the client after the last upload packet.

Client → ESP (no payload):

E

U

0x00

0x00

ESP → Client (OK):

U

E

0x01

0x00

O

ESP → Client (Error):

U

E

0x01

0x00

E

---

Start download — SD / DS

Client → ESP:

Payload: path size (1 byte), path, filename size (1 byte), filename.

S

D

PL_LO

PL_HI

PATH_SZ

PATH…

NAME_SZ

NAME…

ESP → Client (OK — transfer can start):

Payload: status O, then total file size (uint32_t LE).

D

S

0x05

0x00

O

FILE_SIZE(4)

ESP → Client (Error):

D

S

0x01

0x00

E

---

Download packet — DP / PD

ESP → Client:

Payload: packet ID (uint32_t LE), then data bytes.

D

P

PL_LO

PL_HI

ID(4)

DATA…

Client → ESP (ACK):

P

D

0x05

0x00

O

ID(4)

---

End download — ED / DE

Sent by the ESP after the last download packet.

ESP → Client (no payload):

E

D

0x00

0x00

Client → ESP (ACK):

D

E

0x01

0x00

O

---

Command — CM

Client → ESP (1-byte payload: command code):

C

M

0x01

0x00

CMD

Command codes:

Code	Hex	Meaning
A	0x41	Abort current transfer

Abort frame:

C

M

0x01

0x00

A

---

Capability probe

Clients must assume no binary file-transfer support until check (2) succeeds, even if (1) succeeded.

1. After WebSocket is open, consume the mandatory welcome TEXT frame.
2. Send binary SR with empty payload (header only: S, R, length 0 LE).
3. Wait for a binary response (recommended timeout: 2–5 s).
4. Interpretation:
   • No binary RS before timeout → no binary support (wrong endpoint/subprotocol or old firmware).
   • Binary RS with non-empty payload → binary status channel present; first payload byte = transfer state.
   • Idle (O), payload ≥ 2 bytes: byte 1 = protocol version; value 1 = V1 as defined here.
   • Idle (O), payload 1 byte: legacy server — clients may still attempt V1 but explicit version byte is preferred.

---

Transfer flow summary

Upload

Download

Abort (at any point during transfer)

---

Server implementation guide

Connection:

• Path: /wsdata (distinct from /ws).
• Subprotocol: negotiate esp3d-v1. Reject clients offering only webui-v3 for this URI.
• Send one TEXT welcome frame immediately after accept.

Minimum V1 behavior:

1. SR → RS — idle: O + version 1 (2-byte payload). Upload/download in progress: state byte + path + filename + sizes.
2. Upload sequence — accept SU, UP, EU; reply US, PU (5-byte payload), UE.
3. Download sequence — accept SD; reply DS with file size, then DP / ED; client sends PD / DE.
4. Concurrency — one active transfer per connection; return B on US/DS if busy.
5. Text channel — same socket carries TEXT frames for [ESP720]/[ESP740] and G-code.

Error handling:

• Invalid opcode: log/drop; optional TEXT error is product-specific.
• Payload too short: respond with E on the relevant ACK if the protocol defines one for that step.

---

Testing

python tools/websocket/ws_transfer_test.py --host <ip> --port <port> status
python tools/websocket/ws_transfer_test.py --host <ip> --port <port> roundtrip <file> /fs

Testing tools are located in the tools/websocket directory of the ESP3D repository.

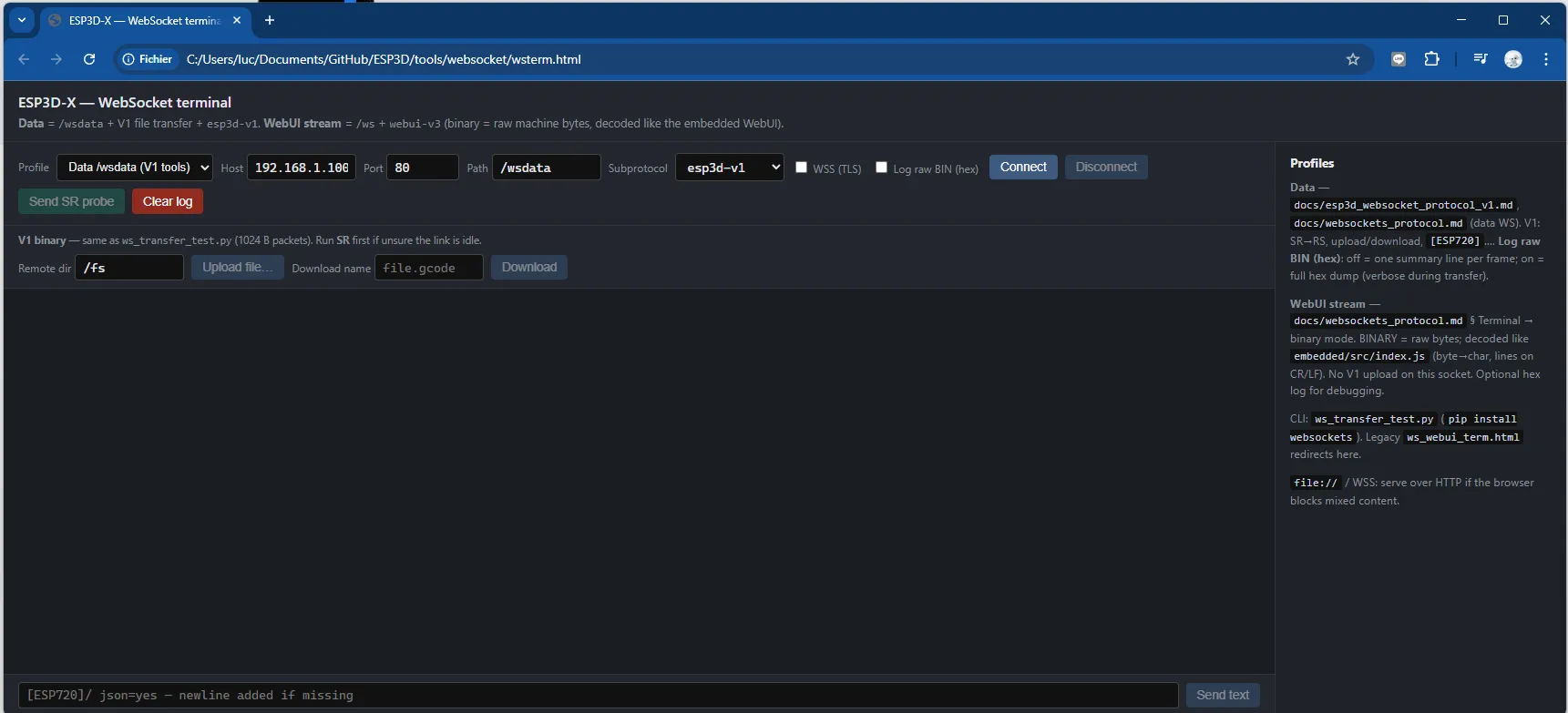

wsterm.html , websocket client test

---

Reference implementation

• Server: main/modules/websocket_server/esp3d_ws_data_service.cpp / .h
• Constants: WS_OP_*, WS_STATUS_*, WS_BINARY_PROTOCOL_V1
• Packet size: ESP3D_WS_TRANSFER_PACKET_SIZE

Client note

The pendant’s WebSocket client build targets text streaming to the CNC; it does not implement the V1 binary file-transfer client. Third-party servers on the machine tool can implement this document so PC or phone clients perform file transfer over ws://.
