ESP01S 1M
Specs
Section titled “Specs”

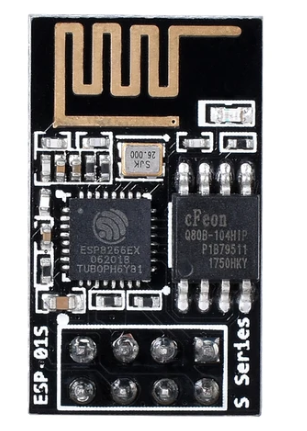

ESP8266 in ESP01 format (8 pins, VCC/CH_DP internally bridged ) with 1MB flash memory, ceramic antenna
Pinout
Section titled “Pinout”
1
2
3
4
GND
IO02
IO0
RXD
TXD
CH_PD
RESET
VCC
