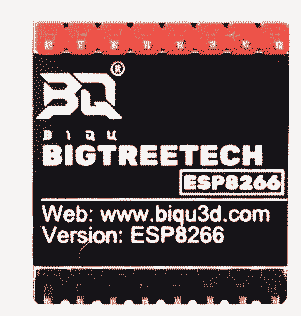

Bigtreetech WiFi module
- ESP8266 in ESP12 format with 4MB flash memory, ceramic antenna, 16 pins
Pinout
Section titled “Pinout”| 1 | 2 |
|---|---|
| RST | TX |
| ADC | RX |
| EN | IO5 |
| IO16 | IO4 |
| SCK(IO14) | IO0 |
| MISO(IO12) | IO2 |
| MOSI(IO13) | IO15 |
| 3.3V | GND |
| 1 | 2 |
|---|---|
| RST | TX |
| ADC | RX |
| EN | IO5 |
| IO16 | IO4 |
| SCK(IO14) | IO0 |
| MISO(IO12) | IO2 |
| MOSI(IO13) | IO15 |
| 3.3V | GND |
