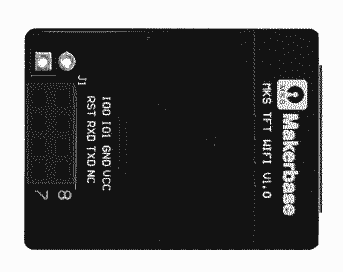

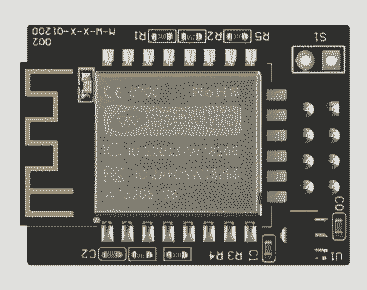

MKS WiFi Module V1.0 (8 pins)
Specs
Section titled “Specs”
ESP8266 with 4MB flash memory, ceramic antenna
github
Pinout
Section titled “Pinout”
1
2
3
4
VCC
GND
IO0
IO4
NC
TX
RX
RST
