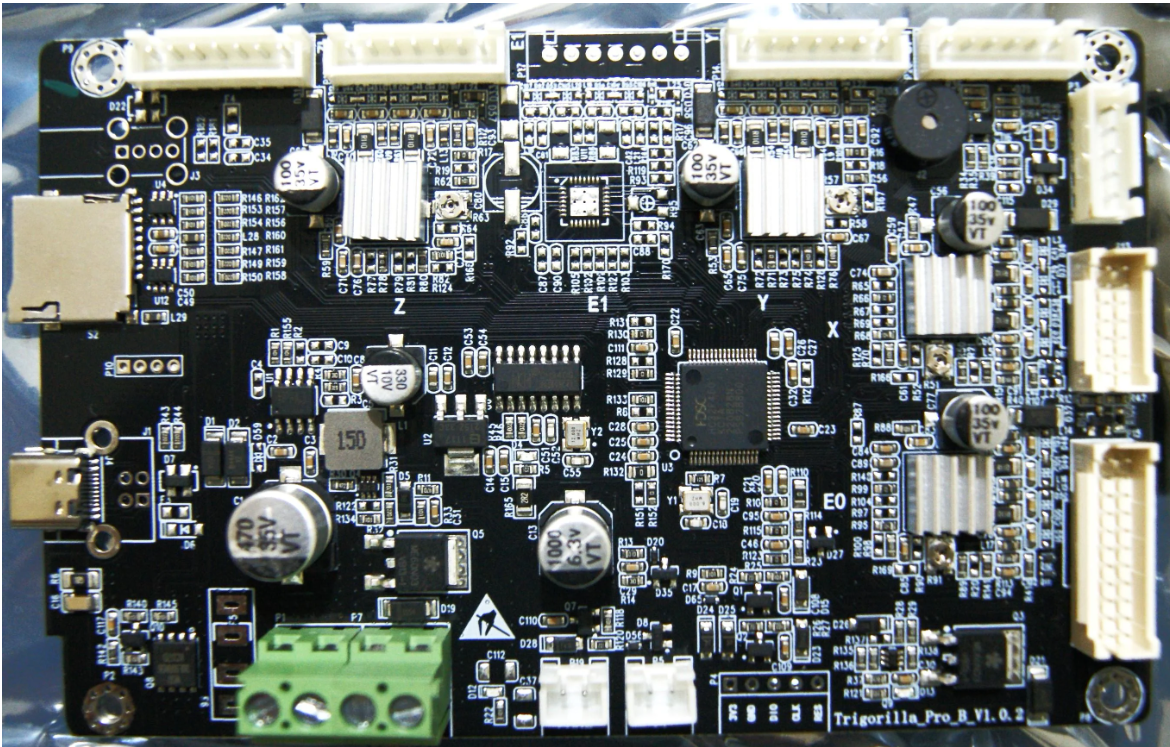

Trigorilla Pro B V1.0.2 board

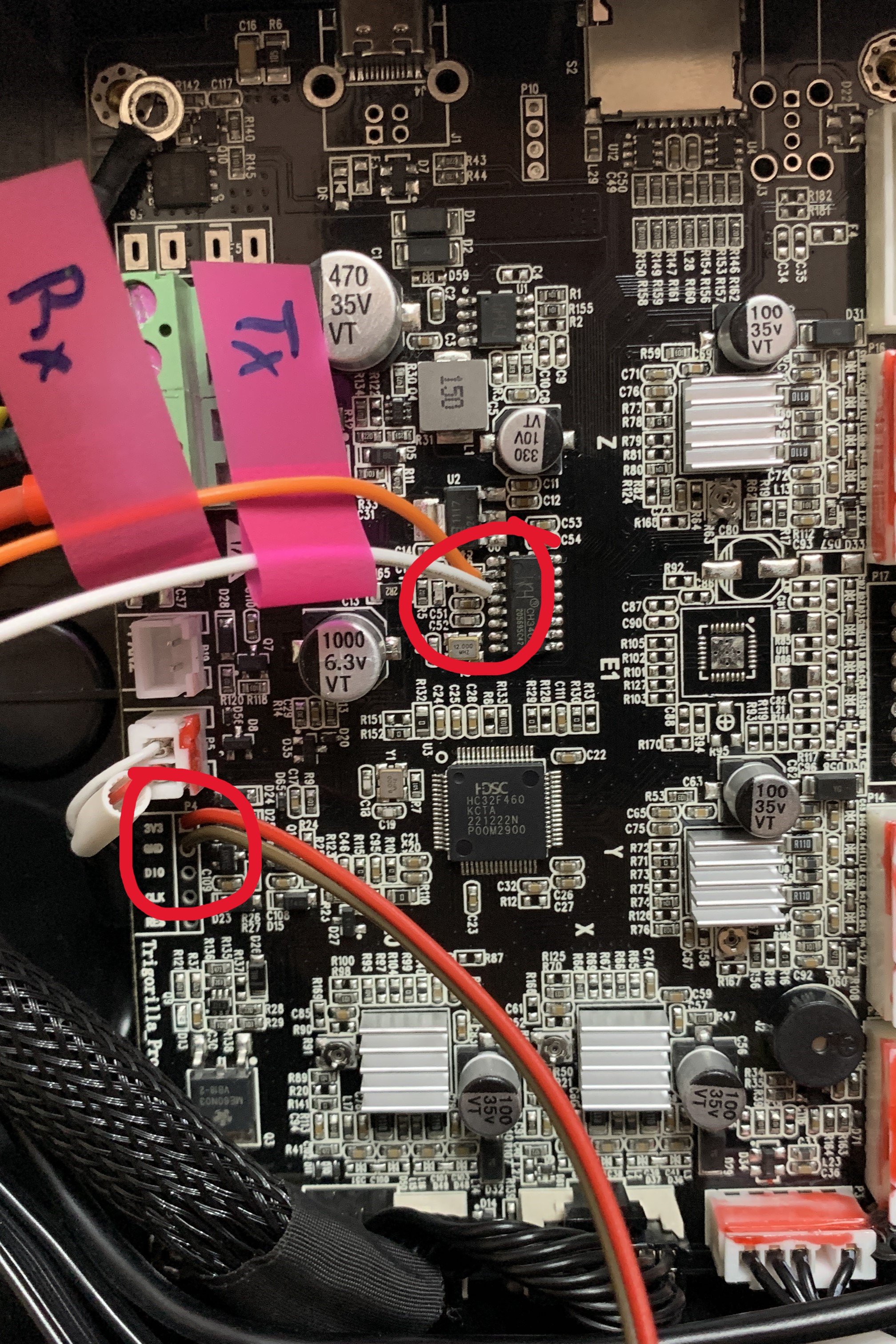

To connect you can use pins 2 and 3 of the CH340G chip. (Orange = RX, White = TX) GND and 3.3V can be taken from left side of the board. Baud rate is 115200.
| Board pins voltage | 3.3V |
| Board firmware | Marlin |
| Board configuration note | None, it use same serial as USB port so don’t use both together |
| ESP3D configuration note | Raw serial, no SD |
